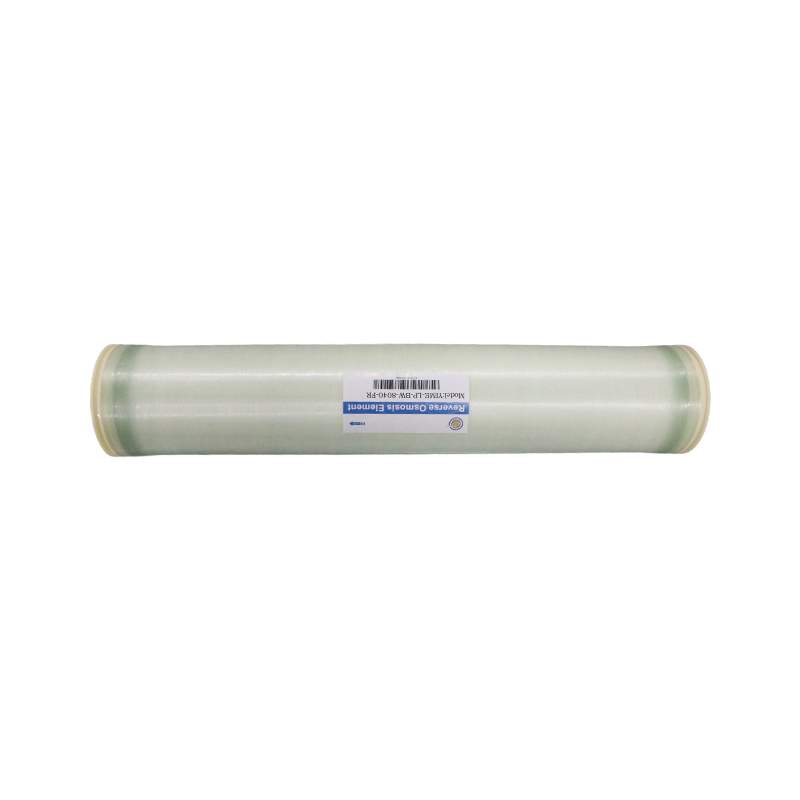

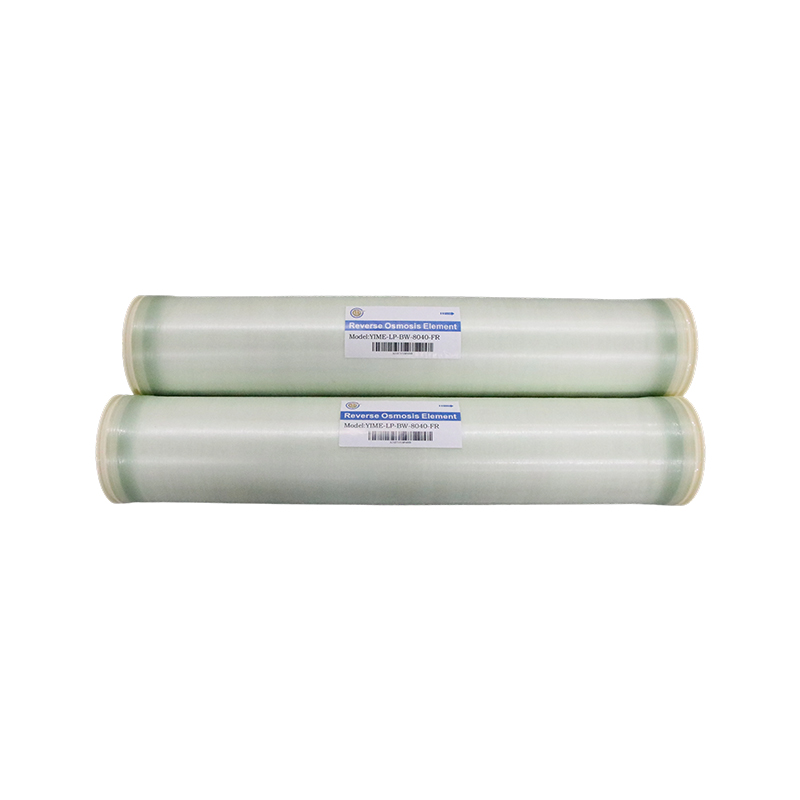

Industrial RO Membrane LP-BW-8040-（FR)
LP-BW-8040-（FR)LP-8040 Low-Pressure Reverse Osmosis Membrane Elements Applications and Suitability:
The LP-8040 low-pressure reverse osmosis membrane elements are ideally suited for the desalination of water with a maximum salt concentration of 2000 mg/L. These elements can utilize municipal tap water or groundwater as the source water. They are extensively employed in various sectors, including residential water supply systems, facilities for the production of pure water, and in industrial and food production processes.
-
LP-8040 Main Product Advantages: High permeability, high water production rate, low-pressure operation, low energy consumption, and reduced operating costs.
-
Product Specifications:
Model: YIME-LP-8040
Capacity: 41.6m³/d
Desalination: 99%
Place of Origin: Guangdong, China
Delivery Time: 2-7 days
Supply Ability: 3,000 pcs/day
For further inquiries or pricing details, please contact us via:
Email: 263816674@qq.com
Wechat/Zalo/WhatsApp: +86-133-3263-1293
WhatsApp:+8613332682173
LP-8040 Main Parameters:Model
Effective Membrane
Area ft² (㎡)
Daily Water Production
GDP（m³/d）
Stable Salt Rejection
Rate（%）
Operating Pressure
（PSI）
YIME-LP-8040
400（37.2）
11000（41.6）
99.5
150
YIME-LP-4040
85(7.9)
2400（9.8）
99.5
150
LP-8040 standard testing condition
Test Feed Water
Test Temperature
pH Value
Recovery Rate（%）
Operating Pressure（PSI）
2000PPM（Nacl）
25±5
7.5～8
15±5
5
LP-8040 Parameter Table
Maximum Operating Pressure
1.5Mpa
Membrane Element Length
40″
Free Chlorine Tolerance
＜0.1ppm
Membrane Element Diameter
8″
pH Range
6～9/4～11
Central Tube Diameter
1.125″
Maximum Feedwater Turbidity
＜1NTU
Weight
12kg
Maximum Feedwater SDI
5.0
Spacer Thickness
30mil
Maximum Feedwater Flow Rate
15m³/h
Effective Membrane Area
37㎡
Maximum Operating Temperature Range
0＜LP-8040＜45
Desalination Rate
99.6%（3000ppm Nacl ）25℃
Concentration Ratio (Production: Feed)
5：1
Water Production
28.4m³/d（3000ppm Nacl）25℃
Maximum Pressure Drop
1kg/cm2
Boron Removal Rate
89%
