Industrial RO Membrane LP-4040
LP-4040Industrial Reverse Osmosis and Nanofiltration Membrane Product Series

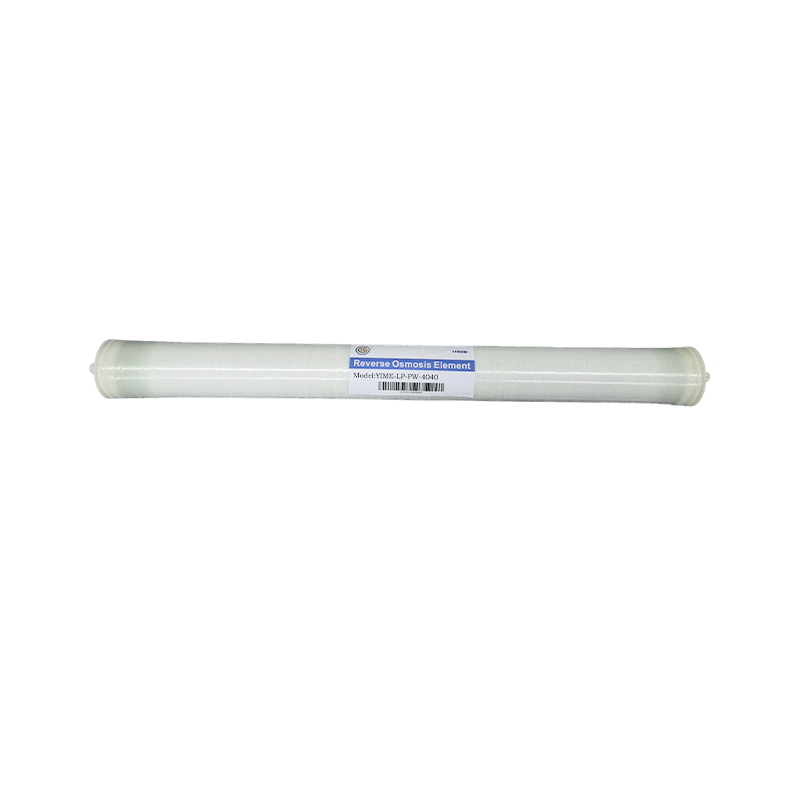

Yimo brand Industrial RO Membrane YIME-LP-PW-4040 are designed with a spiral-wound structure. They consist of a central water collection tube, multiple membrane bags, and grid-like feedwater flow channels between the membrane bags. Each membrane bag is made of two membrane sheets placed back-to-back, with a permeate flow channel fabric in between and a grid-like feedwater flow channel on the front. The three edges of the membrane bag are sealed with adhesive, while the fourth edge is open to the perforated permeate collection tube.
These membrane elements offer high resistance to fouling, low replacement costs, simple external piping, easy cleaning, and convenient maintenance. Yixuan membrane elements come in various models, each tailored to different applications and environmental conditions.
-
Industrial Low-Pressure RO Membrane Elements
(1) Main Application Areas for Industrial RO Membrane YIME-LP-PW-4040: The low-pressure reverse osmosis membrane elements are suitable for desalination of water with a salt concentration of up to 2000 mg/L, using municipal tap water or groundwater as the feedwater. They are widely used in areas such as residential water supply systems, pure water production plants, and industrial/food production.
(2) Main Product Advantages: High permeability, high water production rate, low-pressure operation, low energy consumption, and reduced operating costs.
-
Main Parameters:
Model
Membrane Size
Flow Rate
Desalination Rate
Operating Pressure
Applicable Water Source
600 GPD
3012
600 Gallons/Day
97%
60-100 psi
Municipal Tap Water
Model
Effective Membrane Area
ft2（m2）
Daily Water Production
GDP（m3/d）
Stable Salt Rejection
Rate（%）
Operating Pressure（PSI）
YIME-LP-PW-4040
85(7.9)
2400（9.8）
99.5
150
Standard testing:
Test Feed Water
Test Temperature
pH Value
Recovery Rate（%）
Operating Pressure（PSI）
2000PPM（Nacl）
25±5
7.5～8
15±5
5
